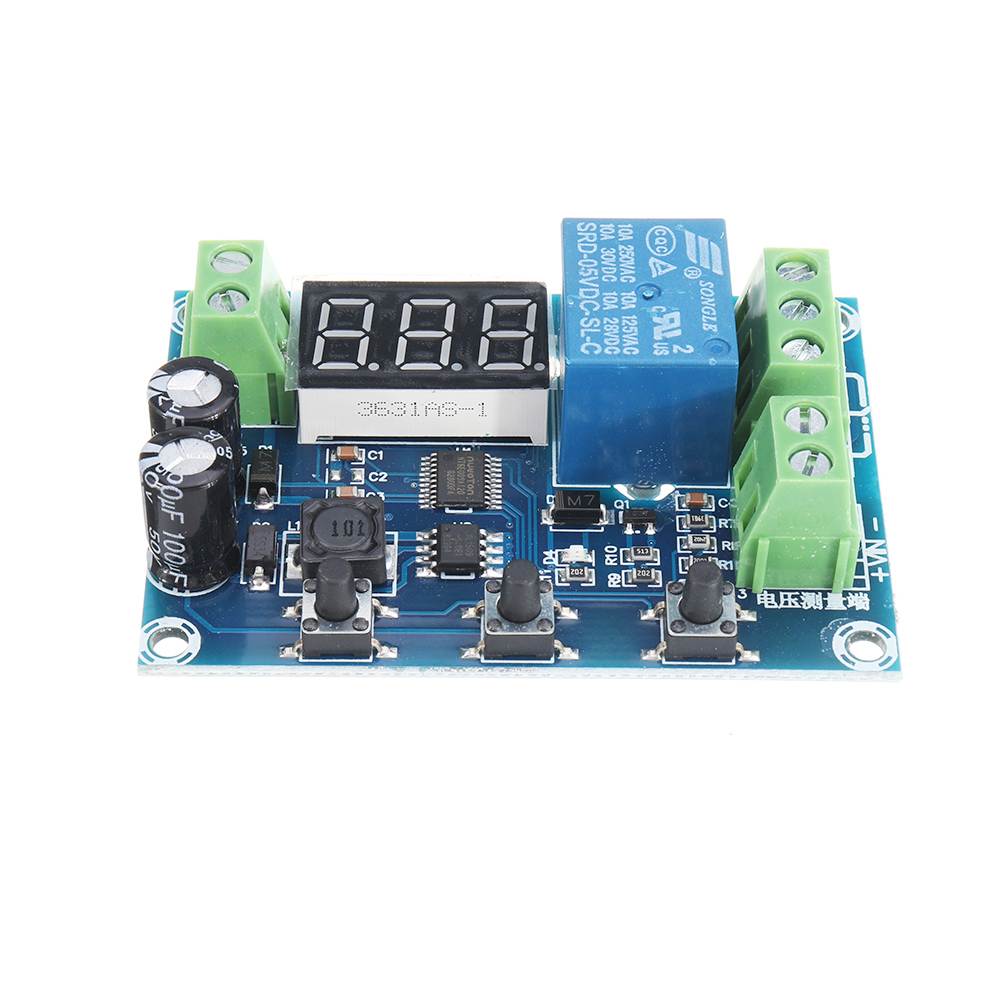

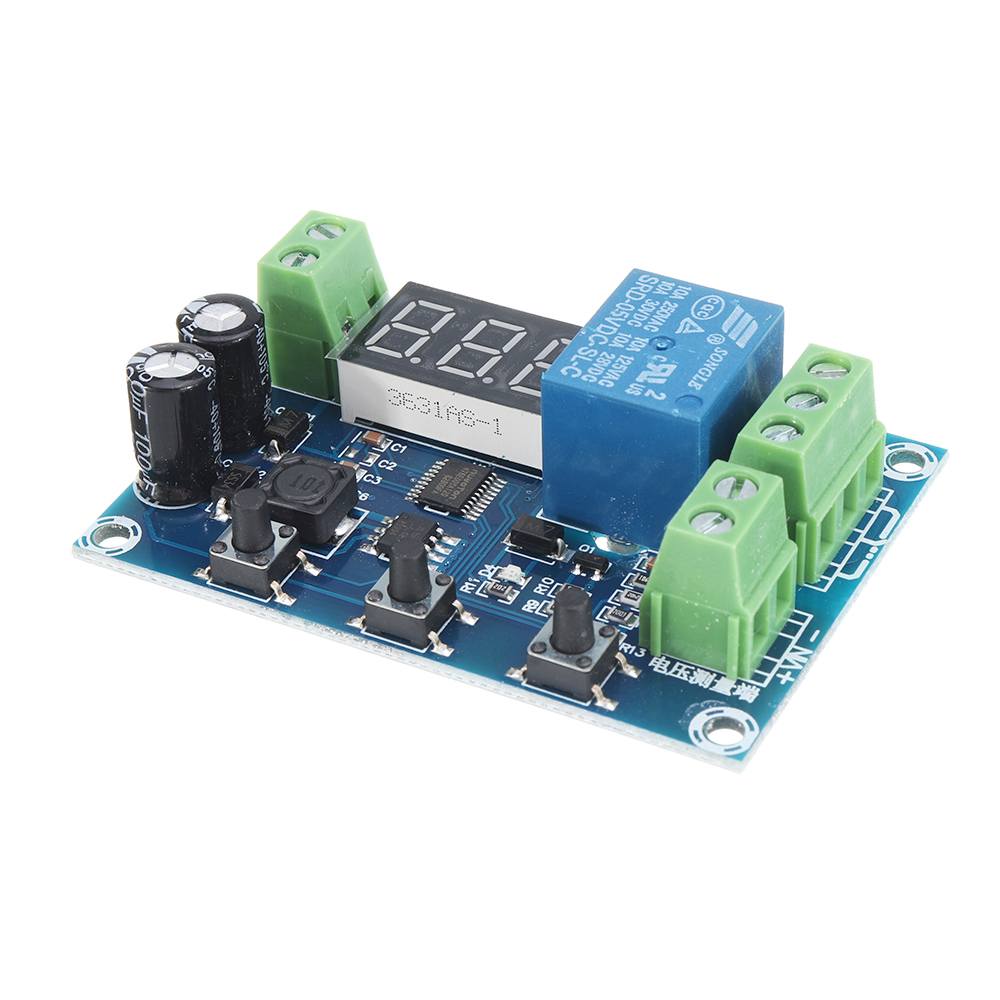

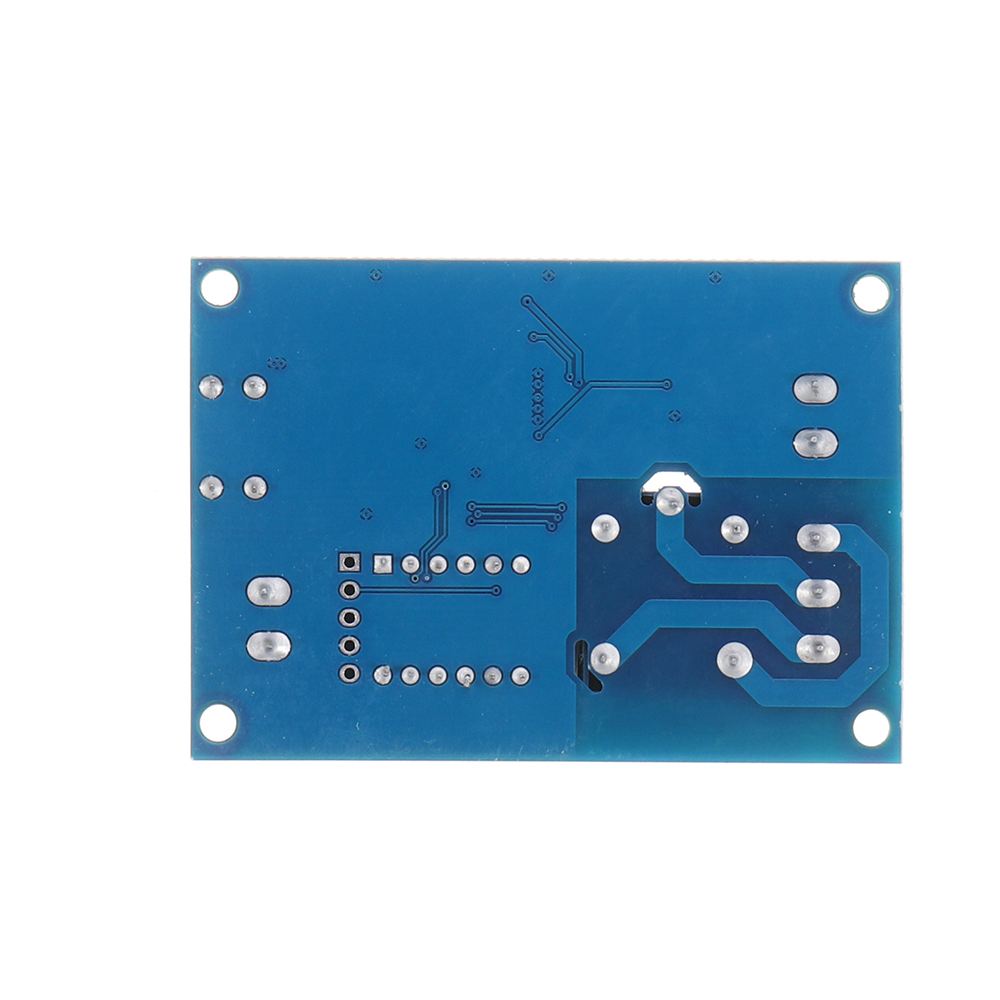

XH-M608 DC6-40V Battery Charge Discharge Module

brand: DIYTECH SKU:DT11558

$4.99

Specifications:

Material:Metal
Colour:Blue
Model: M608
Input voltage: DC6-40V
Display accuracy: 0.1V
Control accuracy n: 0.1V
Voltage error: +/-0.1V
Adaptation range: 6-40V lithium battery
Product size: 66*46*16mm
Weight: 80g

Press and Display:

Set key: SET plus key: ADD key: DEC; Power on the display voltage
Normal display - short press SET - P0 - short press ADD / DEC - P0 P1 P2 switch
1 P0 - Short press SET - Display U - Short press ADD / DEC - U P C D Switch
2 P1 - Short press SET - Display 12.0 - Short press ADD / DEC - parameter Slow switch
Long press ADD / DEC - parameter to quickly switch
3 P2 - Short press SET - Display 14.5 - Short press ADD / DEC - parameter Slow switch
Long press ADD / DEC - parameter to quickly switch
4 P3 - Short press SET - Display A.00 - Short press ADD / DEC - Parameter Slow switching decimal point does not blink
Long press ADD / DEC - parameter to quickly switch
① Normal display - short press ADD - display voltage lower limit
Display voltage lower limit - Short press SET - Normal display
② Normal display - short press DEC - display voltage limit
Display voltage upper limit - Short press SET - Normal display
③ normal display - long press DEC - display countdown time
Display countdown time - short press SET - decimal point flashing start countdown
Countdown time - long press SET - display countdown set time decimal point does not flash stop countdown
④ non-menu parameters - long-press ADD - normal display
① ② ③ ④ between each other quickly switch

Package Included:

1 x XH-M608 DC6-40V Battery Charge Discharge Module
