10S 36V 40A 18650 BMS Balance Lithium Battery Protection Board Module-2pcs
10S 36V 40A 18650 BMS Balance Lithium Battery Protection Board Module-2pcs
brand: DIYTECH SKU:DT1082
Regular price
$9.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancyservice@diytech.cc
Features:
Dimensions : 53 * 63MM
Applicable : 36 V10 series lithium battery protection board
Type of batteries : lithium cobalt / manganese lithium / ternary materials
Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )
Single overcharge recovery voltage :4.10-4 .00 V
Single Over-discharge protection voltage : 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )
Single Over-discharge recovery voltage : 2.80V ± 0.1V
Protection Current consumption : ≤ 300UA
Short circuit protection current : 40A ± 3A
Short circuit protection time : 500MS
Temperature protection : 55 / 65 / 75 degrees
Discharge Current : 30A
The maximum instantaneous current : 40A
Single balanced voltage : 4.19V ± 0.02V
Single balanced current : ≤ 55MA
Charging current : ≤ 10A
Package include :

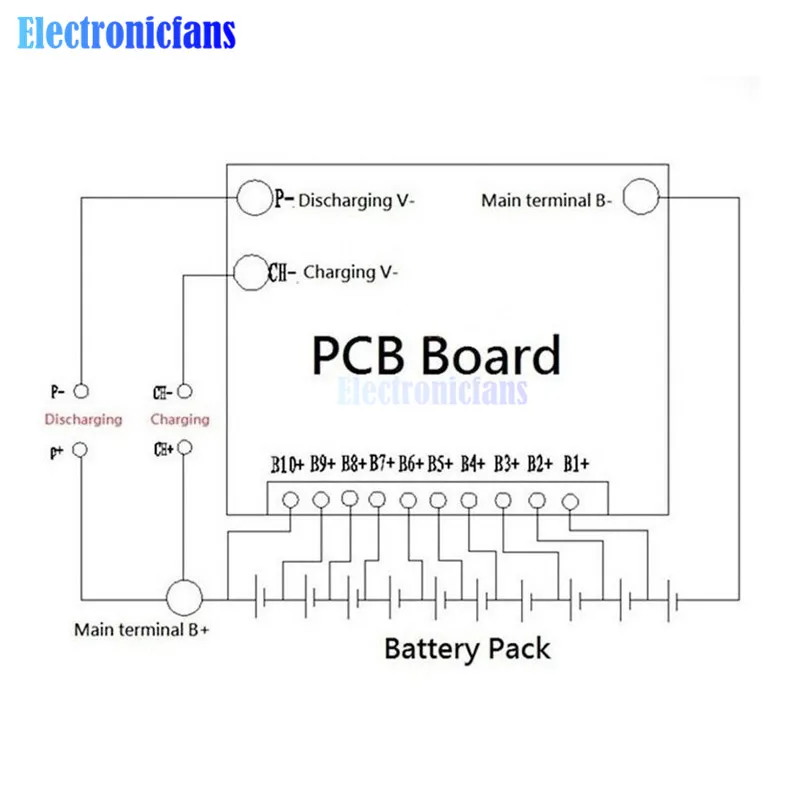

balancing Lithium L-ion Protection PCB + cable
