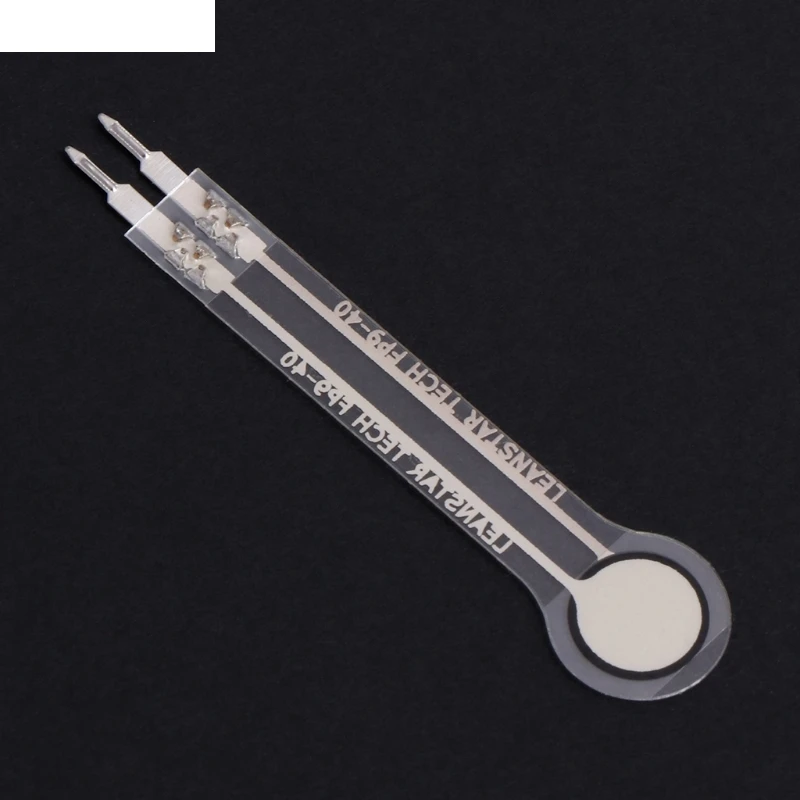

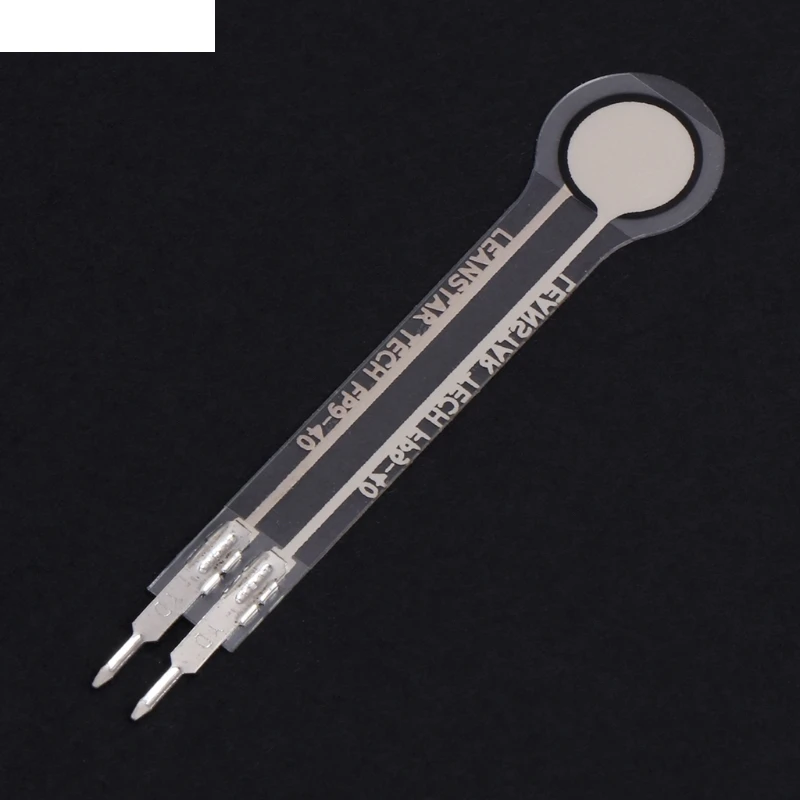

0-20Kg DF9-40 DC 3.3V High Precision Resistive Film Waterproof Pressure Sensor
0-20Kg DF9-40 DC 3.3V High Precision Resistive Film Waterproof Pressure Sensor
brand: DIYTECH SKU:DT2308-03
Regular price
$7.74
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancyservice@diytech.cc
Description:
This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
It has pressure sensitive function as well as water-resistant function.
When sensor detects outside pressure, the resistance of sensor will change.

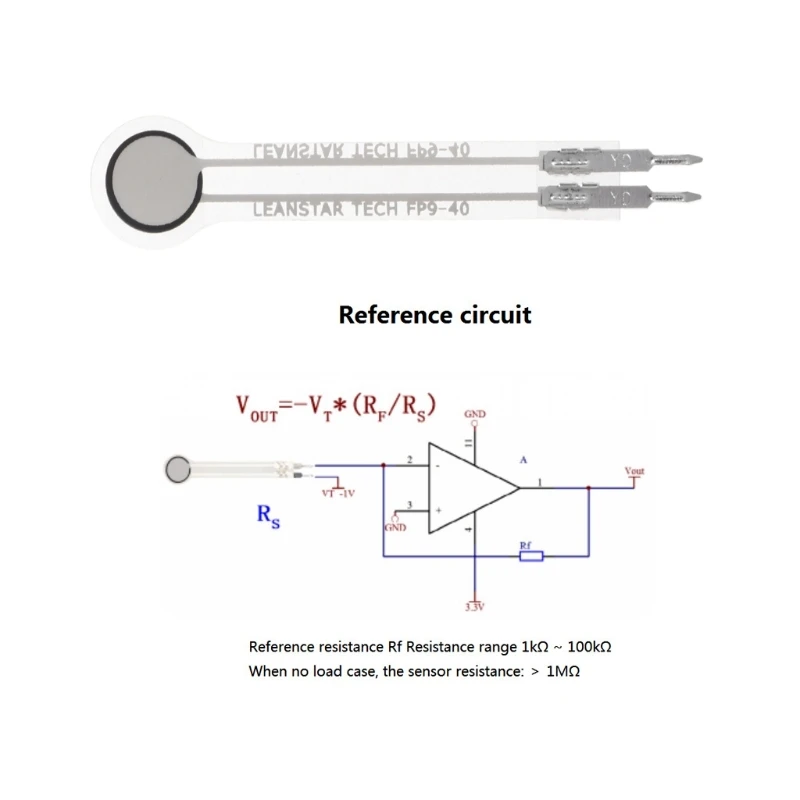

Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

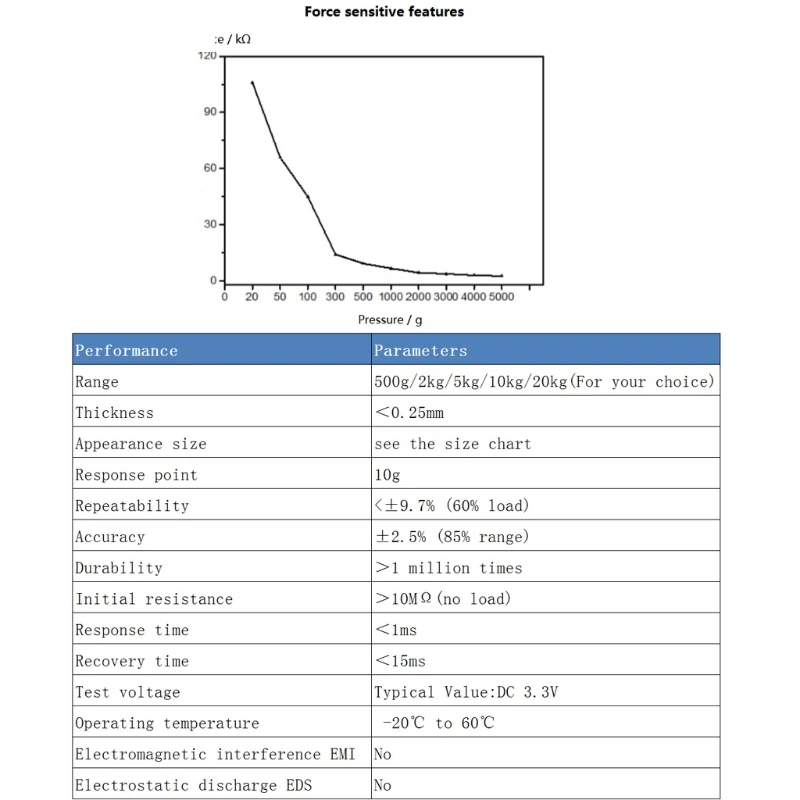

Specifications:
Measuring Range: 0-20kg
Thickness: <0.25mm
Precision: ±2.5%(85% measuring range)
Repeatability: <±5.8(50% load)
Lifespan: >1million times
Initial Resistance: >10MΩ(no load)
Response Time: <1ms
Restore Time: <15ms
Test Voltage: DC 3.3V (typical)
EMI: Not generate
EDS: Not sensitive

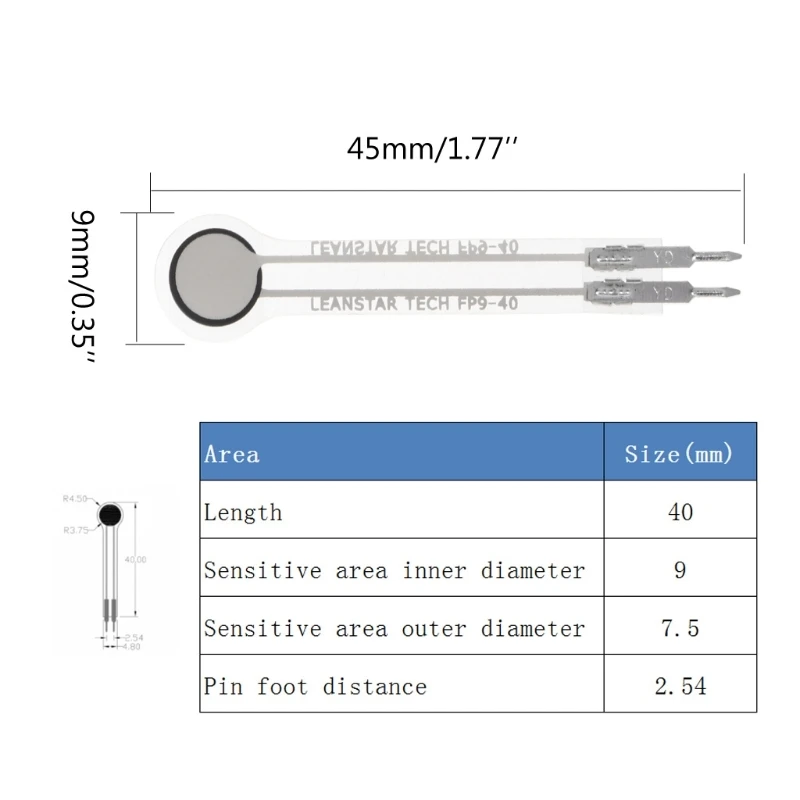

Sensing Area Outer Diameter: 9mm
Sensing Area Inner Diameter: 7.5mm
Pin Spacing: 2.54mm
Quantity: 1
Package Included:
1 x 0-20Kg DF9-40 Film Pressure Sensor DC 3.3V Hi-Precise Resistance-type Thin Film Waterproof Force Sensor Accessories DIY
